Turn Key General Contractor

Pacific Seafood

Wilmington, CA

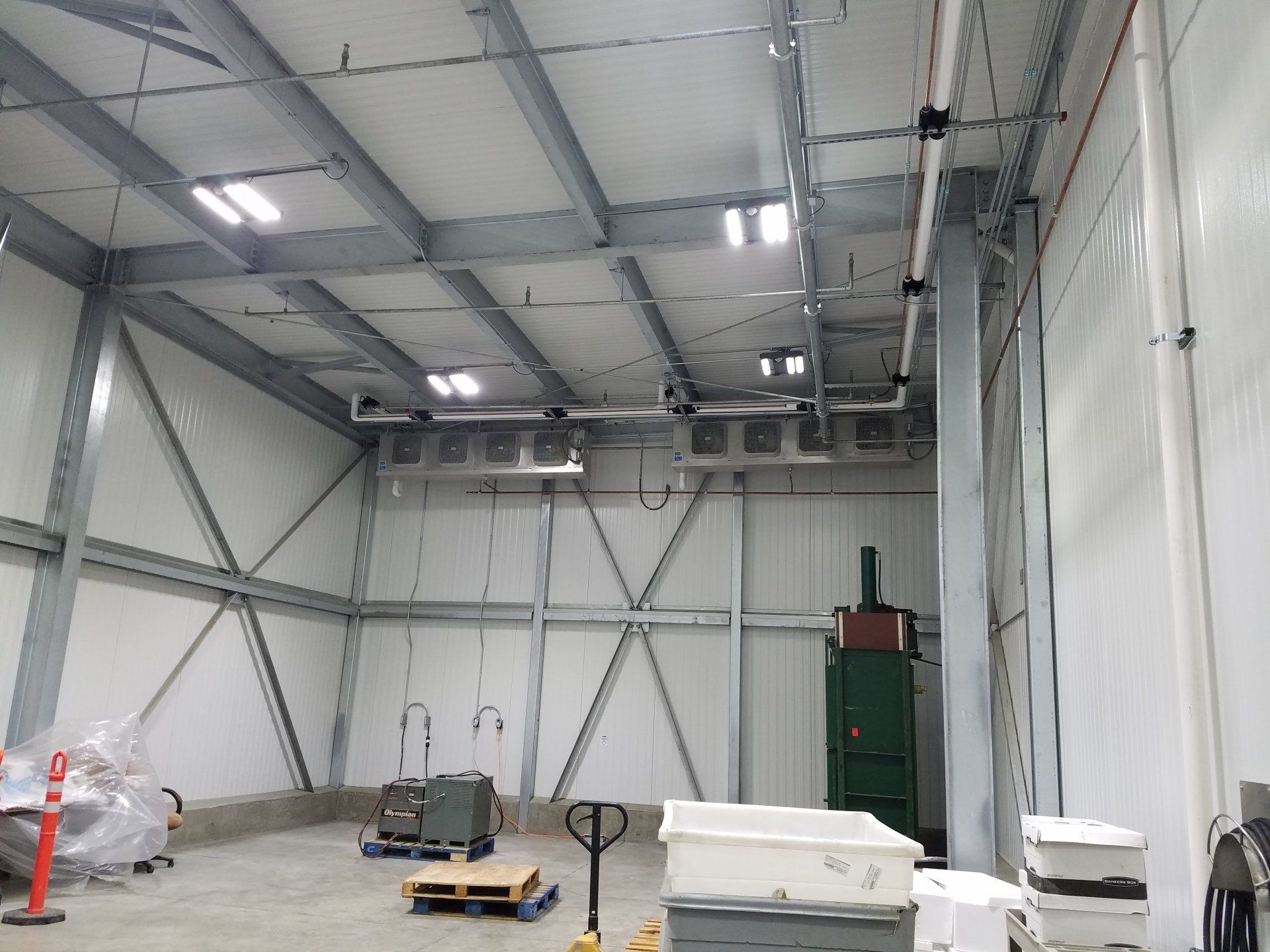

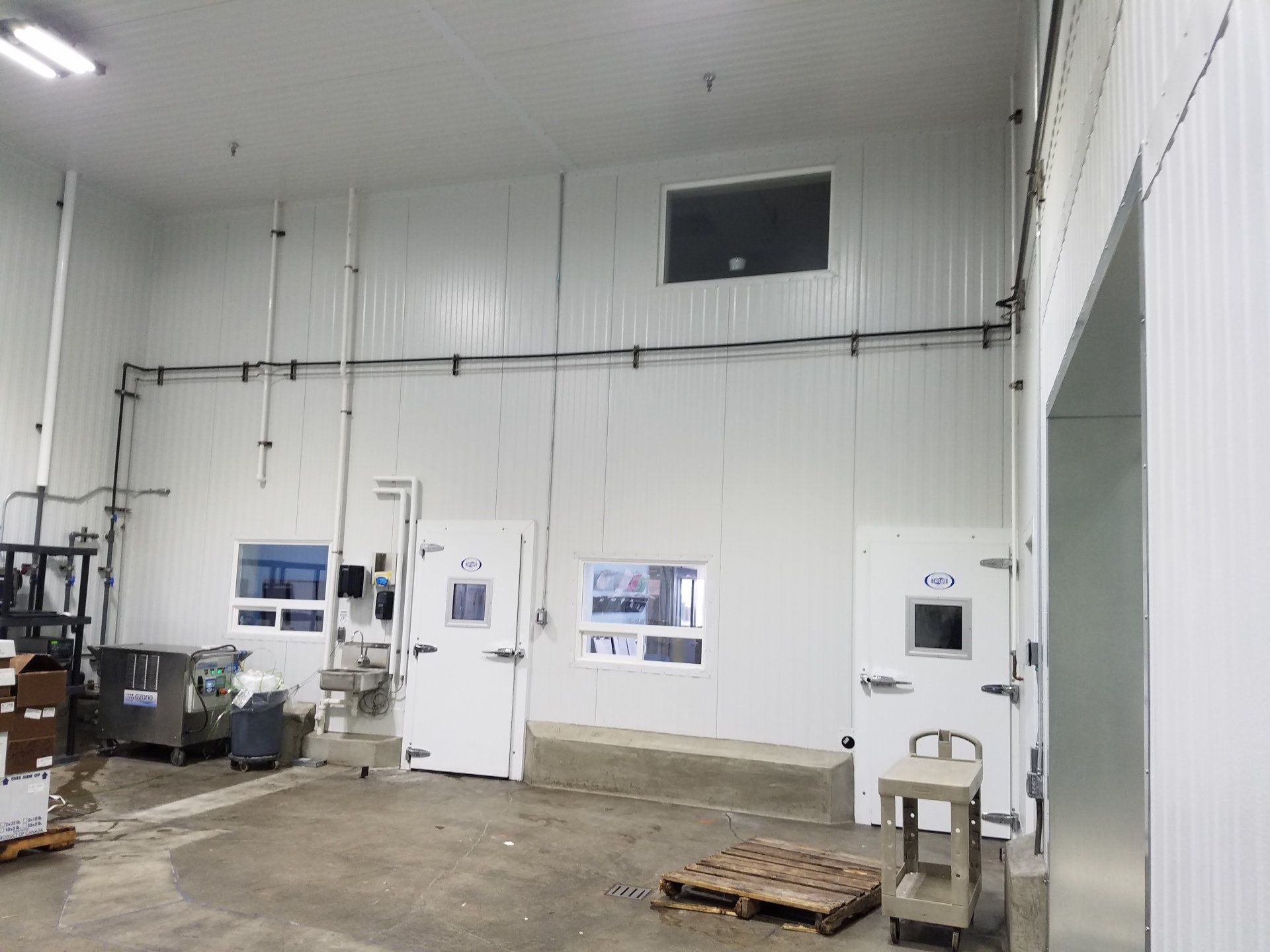

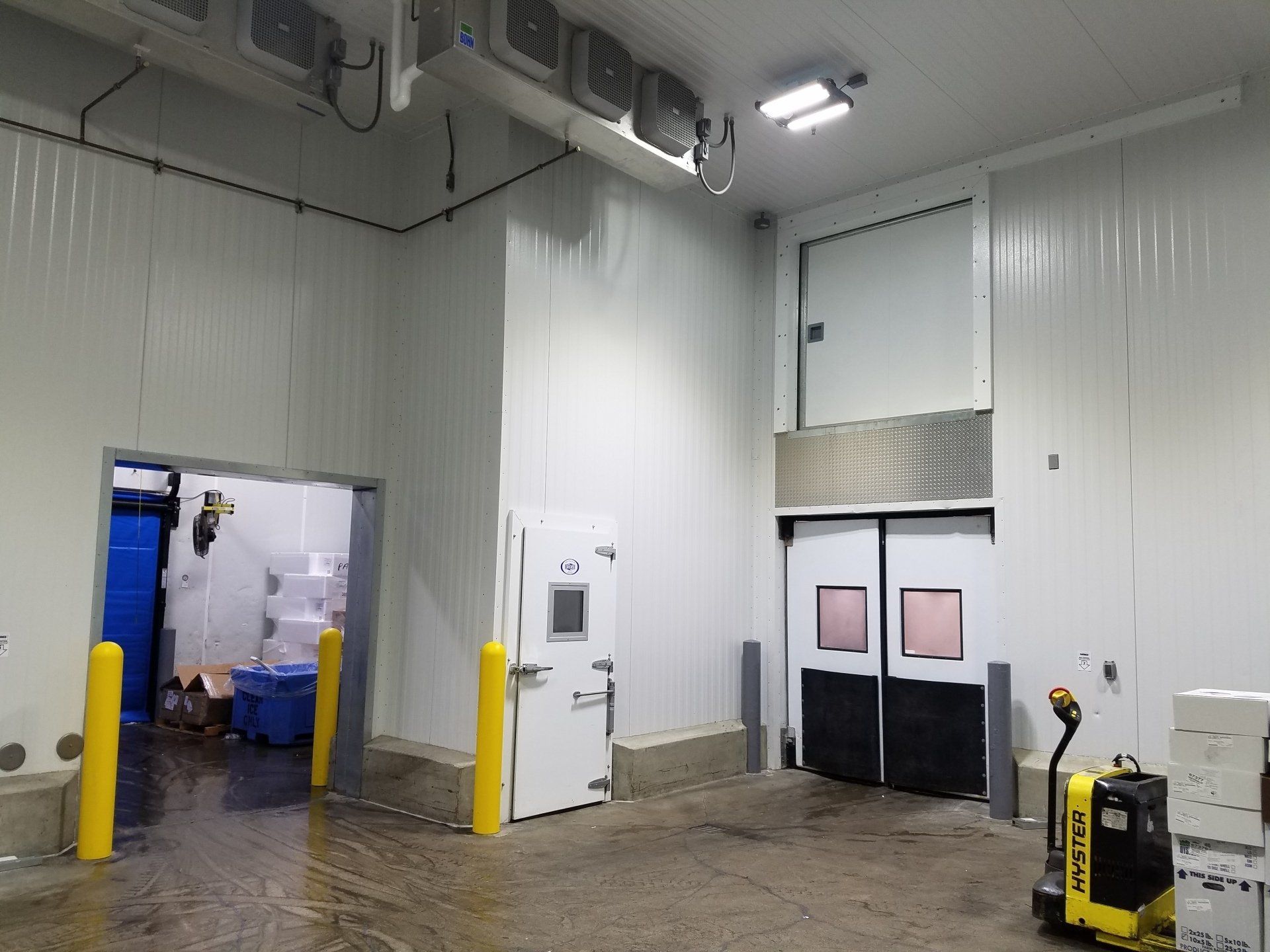

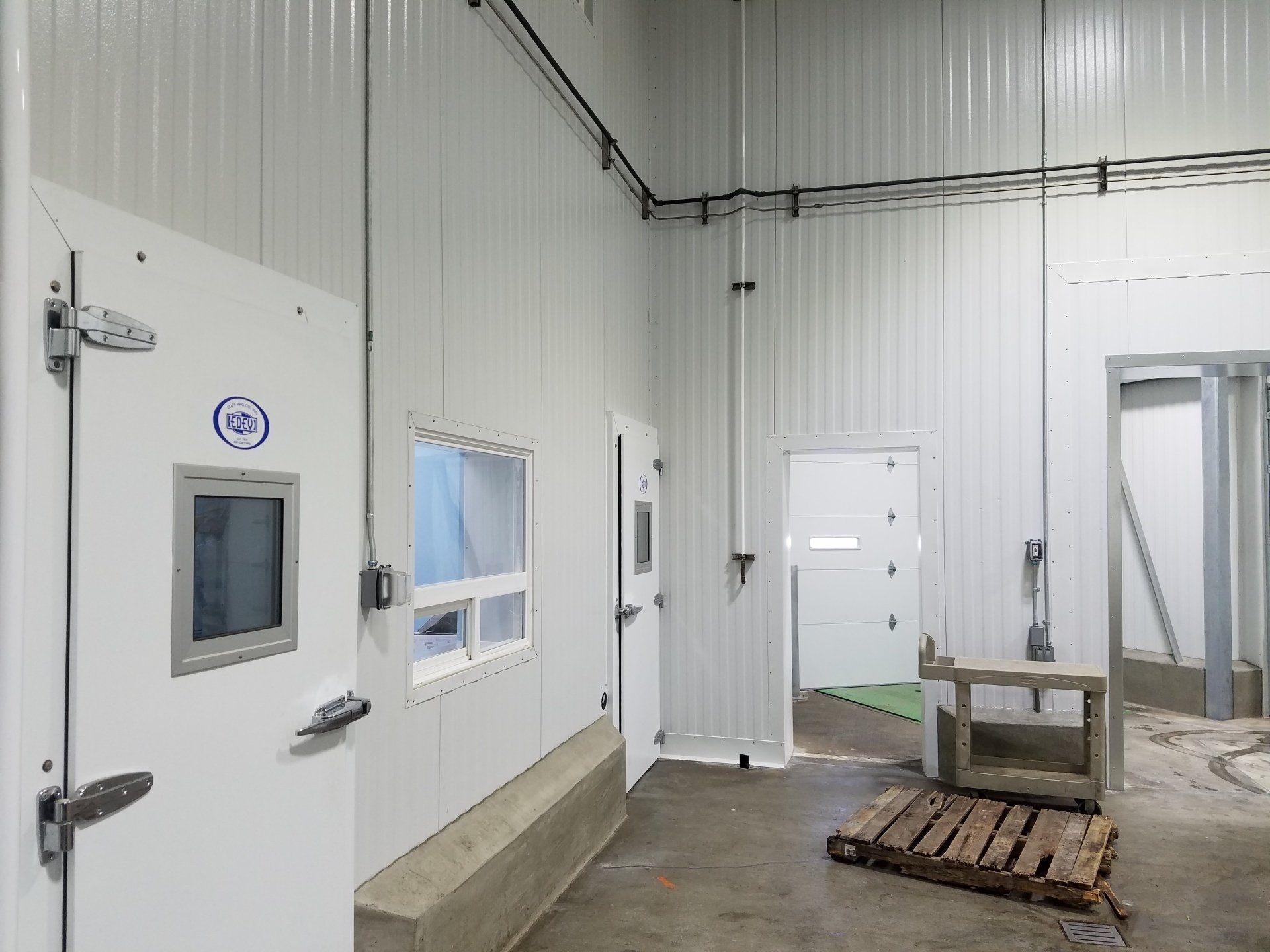

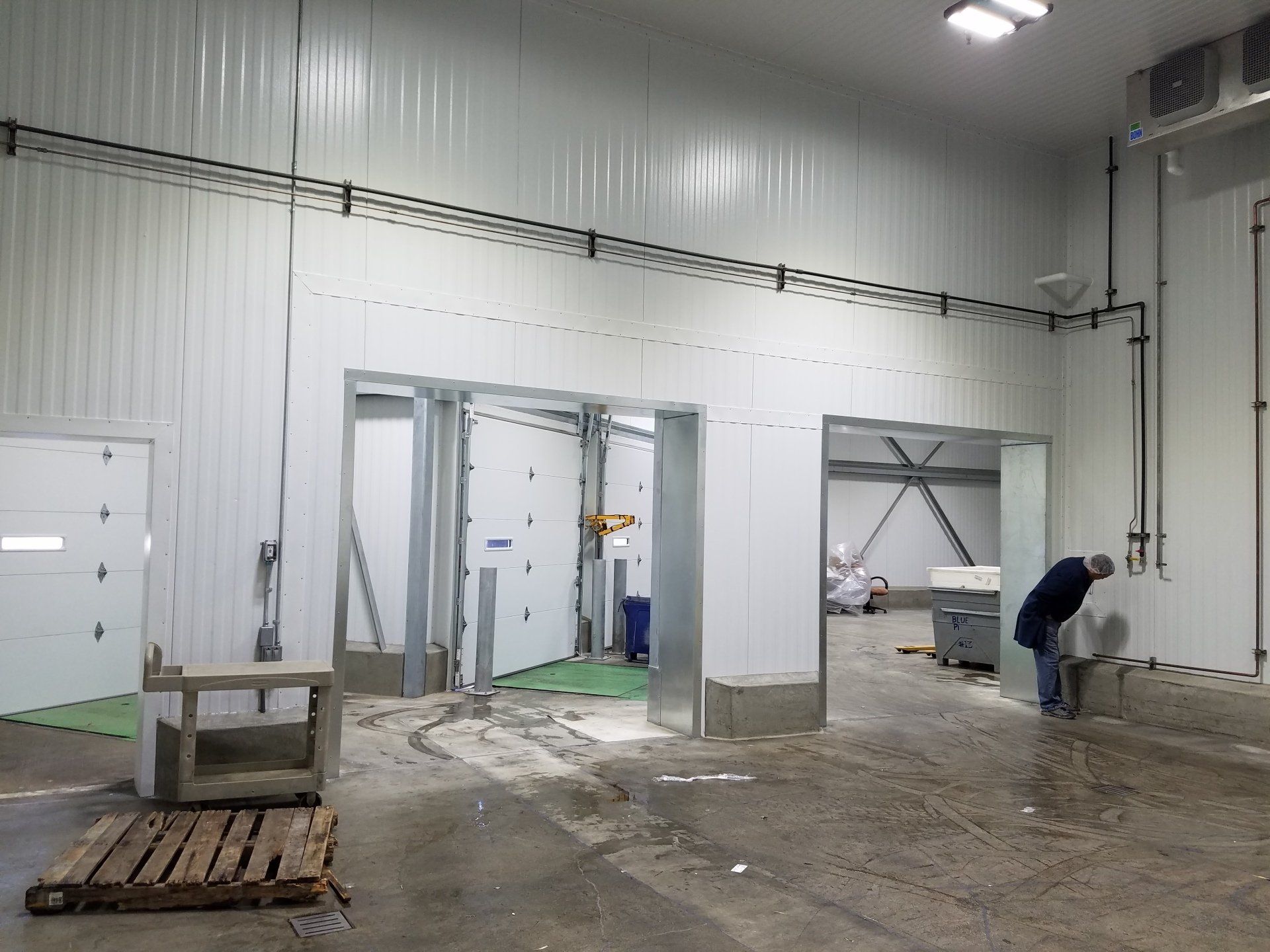

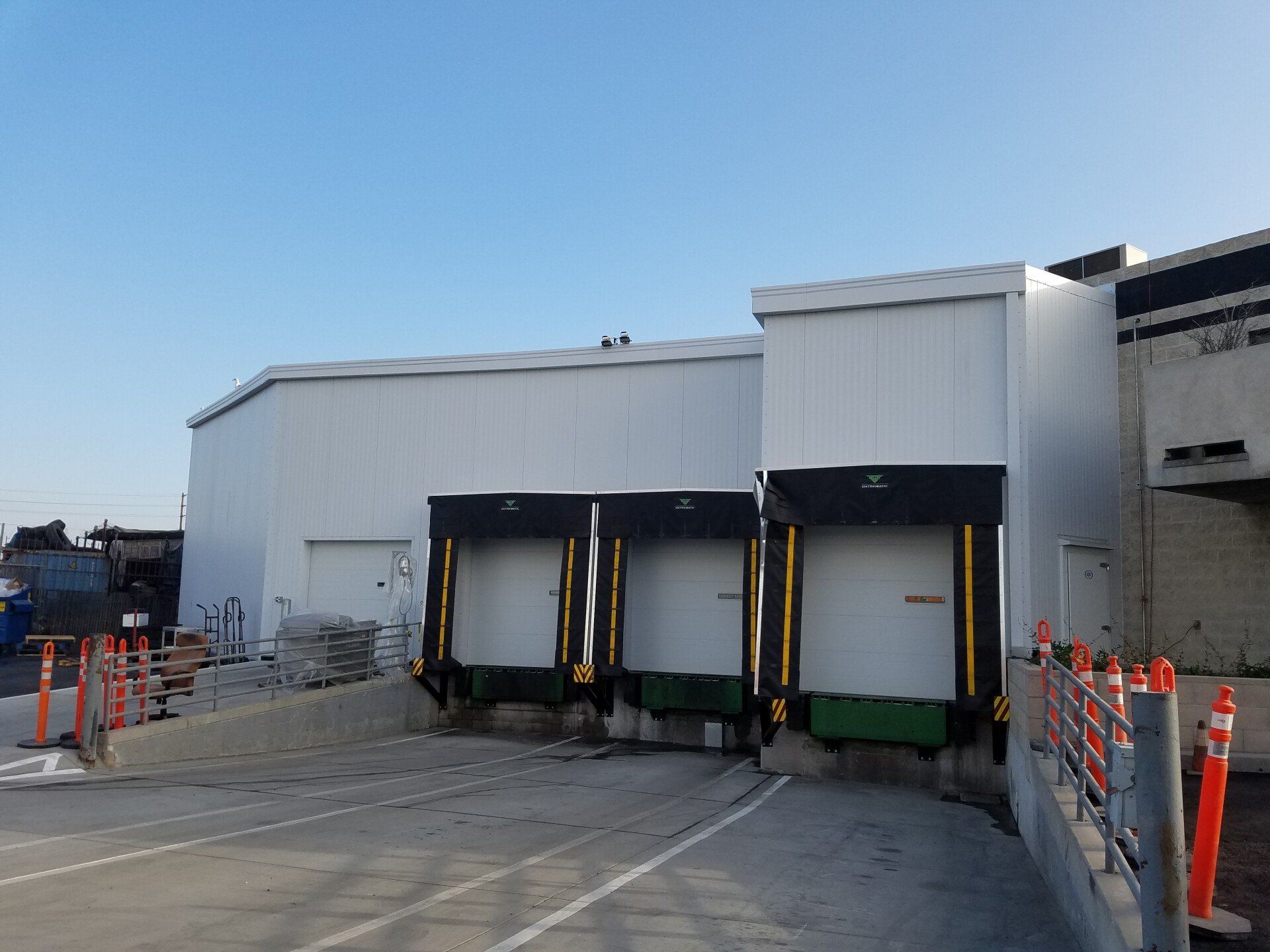

Clarion was able to convert an existing open-air dock into a 1,400 sq. ft. cold space. By fabricating a custom, galvanized-steel structure, and pairing with Metl-span exterior wall and roof panel system, Clarion was able to gain a large space in a small working area. Clarion partnered with Source Refrigeration to install all process room grade refrigeration equipment. The new dock required a dry overhead fire sprinkler system with a dry air compressor. Clarion formed and poured a 21 sq. ft. ice melting pit with a circulating glycol under floor-warming system, and added all up to date LED lighting and energy efficient equipment.


As required by the Los Angeles City Building Department, Clarion installed a self-contained biofiltration planter. The concept is for all the rooftop water to pour into this collection pit. With vapor barrier block walls and multiple layers of rock/sediment, this filters all polluted rain that would be running to the ocean.

Project Features:

  • 1,400 sq. ft. cold dock with 3 truck positions
  • Custom galvanized steel structure
  • Metl-Span exterior wall and roof panel system
  • Edey man doors and sliders
  • Complete dry fire sprinkler system
  • Glycol heated ice melting pit
